BUY S9S12ZVL32F0CLF https://www.utsource.net/itm/p/7466144.html
* Microcontroller IC

Parameter	Description

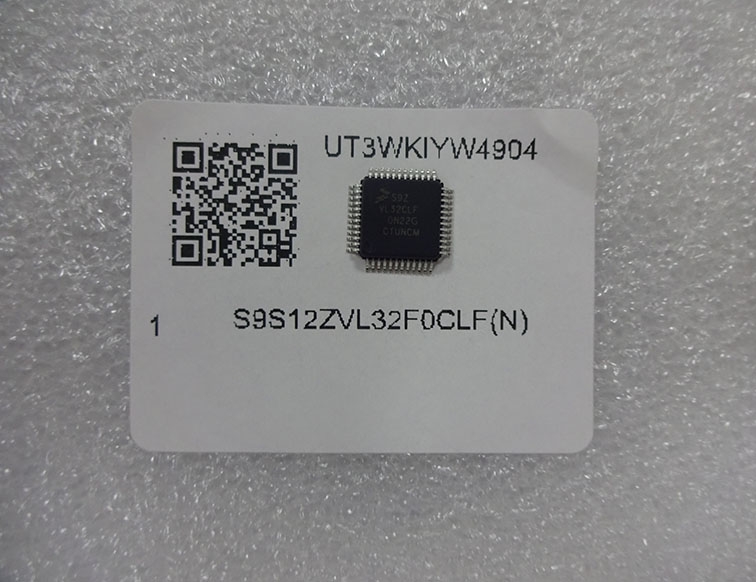

Part Number	S9S12ZVL32F0CLF
Manufacturer	NXP Semiconductors
Package Type	LQFP-48 (7x7)
Operating Temperature	-40°C to +85°C
Supply Voltage	5V
Flash Memory Size	32 KB
RAM Size	2 KB
CPU Type	ColdFire V1 MCF51MC256
Clock Speed	Up to 40 MHz
I/O Pins	48
Peripherals	SPI, I2C, UART, Timer, ADC
Pin Pitch	0.8 mm

Instructions for Use:

1. Power Supply Requirements:

   • Ensure the supply voltage is within the specified range of 5V.
   • Connect a stable power source to the VDD and GND pins.

2. Clock Configuration:

   • The device supports an external crystal oscillator or internal RC oscillator.
   • For precise timing, use an external crystal connected to the XTAL1 and XTAL2 pins.

3. Programming Flash Memory:

   • Use an appropriate programming tool compatible with the JTAG or BDM interface.
   • Follow the manufacturer’s guidelines for flash memory programming.

4. Peripheral Initialization:

   • Initialize peripherals like SPI, I2C, UART using the provided registers.
   • Refer to the datasheet for register maps and initialization routines.

5. Handling Precautions:

   • Handle the device with care to avoid ESD damage.
   • Ensure proper heat dissipation if operating at higher temperatures.

6. Installation:

   • Place the device on the PCB ensuring correct orientation.
   • Follow the manufacturer’s recommended footprint for soldering.

For detailed specifications and advanced configurations, refer to the official NXP S9S12ZVL32F0CLF datasheet.

(For reference only)
