Details

---

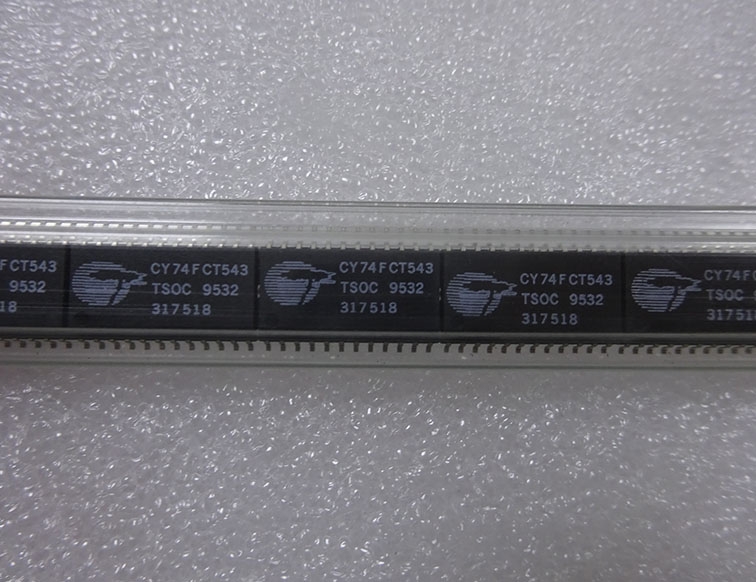

BUY CY74FCT543TSOC https://www.utsource.net/itm/p/7538018.html
Transceiver, Non-Inverting 1 Element 8 Bit per Element Push-Pull Output 24-SOIC

Parameter	Description	Value/Range
Package Type	Package type used for the component	SOIC (Small Outline Integrated Circuit)
Pin Count	Number of pins	14
Operating Voltage	Supply voltage range for operation	2.0V to 5.5V
Operating Temperature	Temperature range where the device can operate effectively	-40°C to +85°C
Logic Family	The logic family it belongs to	Advanced CMOS
Propagation Delay Time	Typical propagation delay time for signal transmission through the device	3.5ns (typical at VCC=5V, TA=25°C)
Power Consumption	Maximum power consumption	20mW (typical at VCC=5V, TA=25°C)
Input Current	Maximum input current per pin	±1mA
Output Current	Maximum output current per pin	±24mA
Storage Temperature Range	Temperature range for storing the device without damaging it	-65°C to +150°C

Instructions for CY74FCT543TSOC:

1. Power Supply Connection: Ensure that the operating voltage is within the specified range (2.0V to 5.5V). Connect the VCC and GND pins appropriately.
2. Signal Handling: Be cautious with input signals; do not exceed the maximum input current of ±1mA per pin. Outputs can handle up to ±24mA per pin.
3. Environmental Conditions: Operate the device within the temperature range of -40°C to +85°C for optimal performance. For storage, ensure temperatures are between -65°C and +150°C.
4. Propagation Delay Consideration: Account for a typical propagation delay of 3.5ns when designing circuits, especially in high-speed applications.
5. Handling Precautions: Handle with care to avoid damage from electrostatic discharge (ESD). Use appropriate ESD protection measures during handling and installation.
6. Mounting Orientation: Ensure correct orientation during mounting on the PCB to avoid connection issues. Refer to the datasheet for pin configuration details.

(For reference only)
